Back to
Walk-In Coolers &
Freezers Index

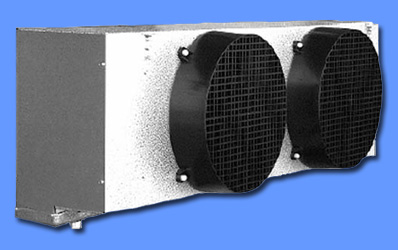

Competitor Modular Cooler Coils
Our most popular cooler-coil line, the Competitor coil units are ideally
suited for use in all commercial walk-in coolers, freezers and similar
applications. Usable storage space is maximized by the compact, slim
profile design. The efficient "draw-through" design provides
uniform air distribution and optimal heat transfer performance and circulation
to maintain desired temperature and humidity. Features include Low Silhouette,
Corrosion Resistant, Draw-Through Design, Easy Installation and made
of Heavy Gauge Aluminum.
Terms, Conditions and Warranty
Information |
Cooler Application +34°F
and above with air defrost
Standard voltage is 115/1/60, Optional 208-230/1/60
Click on model numbers to order
| Model # |
BTU/Hr@
10°F TD |
# Fans |
CFM |
Height |
Width |
Depth |
Weight |
Price |
|
CUC-41AA |
4,100 |
1 |
800 |
17" |
29" |
15" |
47 lbs |
|
|
CUC-51AA |
5,100 |
1 |
800 |
17" |
29" |
15" |
52 lbs |
|
|
CUC-61AA |
6,100 |
1 |
800 |
17" |
29" |
15" |
52 lbs |
|
|
CUC-62AA |
6,200 |
2 |
1,600 |
17" |
49" |
15" |
72 lbs |
|
|
CUC-82AA |
8,200 |
2 |
1,600 |
17" |
49" |
15" |
84 lbs |
|
|
CUC-102AA |
10,200 |
2 |
1,600 |
17" |
49" |
15" |
97 lbs |
|
|
CUC-123AA |
12,300 |
3 |
2,400 |
17" |
69" |
15" |
119 lbs |
|
|
CUC-153AA |
15,300 |
3 |
2,400 |
17" |
69" |
15" |
126 lbs |
|
|
CUC-204AA |
20,400 |
4 |
3,200 |
17" |
89" |
15" |
168 lbs |
|
|
CUC-255AA |
25,500 |
5 |
4,000 |
17" |
109" |
15" |
198 lbs |
|
|
CUC-306AA |
30,600 |
6 |
4,800 |
17" |
129" |
15" |
225 lbs |
|
|
Freezer Application -20°F to +34°
with electric defrost
Standard voltage is 208-230/1/60
Click on model numbers to order
| Model # |
BTU/Hr@
+20°F TD |
# Fans |
CFM |
Height |
Width |
Depth |
Weight |
Price |
|
CUC-41BE |
4,100 |
1 |
800 |
17" |
29" |
15" |
49 lbs |
|
|
CUC-51BE |
5,100 |
1 |
800 |
17" |
29" |
15" |
54 lbs |
|
|
CUC-61BE |
6,100 |
1 |
800 |
17" |
29" |
15" |
54 lbs |
|
|
CUC-62BE |
6,200 |
2 |
1,600 |
17" |
49" |
15" |
79 lbs |
|
|
CUC-82BE |
8,200 |
2 |
1,600 |
17" |
49" |
15" |
87 lbs |
|
|
CUC-102BE |
10,200 |
2 |
1,600 |
17" |
49" |
15" |
101 lbs |
|
|
CUC-123BE |
12,300 |
3 |
2,400 |
17" |
69" |
15" |
123 lbs |
|
|
CUC-153BE |
15,300 |
3 |
2,400 |
17" |
69" |
15" |
131 lbs |
|
|
CUC-204BE |
20,400 |
4 |
3,200 |
17" |
89" |
15" |
173 lbs |
|
|
CUC-255BE |
25,500 |
5 |
4,000 |
17" |
109" |
15" |
204 lbs |
|
|
CUC-306BE |
30,600 |
6 |
4,800 |
17" |
129" |
15" |
232 lbs |
|
|
