Back to Service Type Merchandisers Index



European Style Double Curved Glass Service Case




Single Duty, Self-Contained Case
Case ends included in pricing. Add 1-5/8" for each case end for overall length.
Click on model numbers to place order.
Model # Length Depth Height HP Voltage Weight Price
GSM4SD 48" 45" 50" 1/3 115 450 lbs
GSM6SD 72" 45" 50" 1/2 115 750 lbs
GSM8SD 96" 45" 50" 1/2 115 900 lbs
GSM10SD 120" 45" 50" 3/4 115/230 1100 lbs
GSM12SD 144" 45" 50" 3/4 115/230 1300 lbs
GSM... Other Sizes Available Upon Request Call for Pricing

Available Versions: Double Duty, Self-Contained, Single Duty, Remote, Double Duty, Remote, Single Duty, Hot Case, Double Duty Hot Case, Single Duty, Non-Refrigerated & Double Duty, Non-Refrigerated



GSM European Style Double Curved Glass Service CaseFeatures
Service merchandiser for fresh meat, deli, cheese, fish & salad display. Double curved single pane front glass, bottom hinged, galvanized interior tank. Standard color: white. Gravity top and bottom coils, pressure control, time clock, interior lighting, wrapping board, wire deck shelves, digital thermometer.

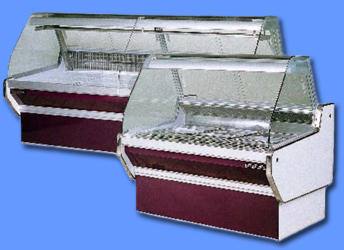

All self-contained models complete with case ends. Remote cases (optional), add case ends. Remote cases complete with TX valves. Double duty cases complete with refrigerated bottom storage. No condensate disposal - all cases require drain for sanitary reasons. GSM4SD & GSM8SD shown at left.



Click here for a list of accessories
Terms, Conditions and Warranty Information



Double Duty, Self-Contained Case
Case ends included in pricing. Add 1-5/8" for each case end for overall length.
Click on model numbers to place order.
Model # Length Depth Height Voltage Weight Price
GSM4DD 48" 45" 48" 115 400 lbs
GSM6DD 72" 45" 48" 115 700 lbs
GSM8DD 96" 45" 48" 115 850 lbs
GSM10DD 120" 45" 48" 115/230 1050 lbs
GSM12DD 144" 45" 48" 115/230 1250 lbs
GSM... Other Sizes Available Upon Request Call for Pricing



Single Duty, Remote Case
Case ends not included in pricing. Add 1-5/8" for each case end for overall length.
Click on model numbers to place order.
Model # Length Depth Height Voltage Weight Price
GSM4SDR 48" 45" 50" 115 450 lbs
GSM6SDR 72" 45" 50" 115 750 lbs
GSM8SDR 96" 45" 50" 115 900 lbs
GSM10SDR 120" 45" 50" 115 1100 lbs
GSM12SDR 144" 45" 50" 115 1300 lbs
GSM... Other Sizes Available Upon Request Call for Pricing



Double Duty, Remote Case
Case ends not included in pricing. Add 1-5/8" for each case end for overall length.
Click on model numbers to place order.
Model # Length Depth Height Voltage Weight Price
GSM4DDR 48" 45" 48" 115 400 lbs
GSM6DDR 72" 45" 48" 115 700 lbs
GSM8DDR 96" 45" 48" 115 850 lbs
GSM10DDR 120" 45" 48" 115 1050 lbs
GSM12DDR 144" 45" 48" 115 1250 lbs
GSM... Other Sizes Available Upon Request Call for Pricing



Single Duty, Hot Case
Add 1-5/8" for each case end for overall length.
Click on model numbers to place order.
Model # Length Depth Height Voltage Weight Price
GSM4SDHOT 48" 45" 50" 115/230 450 lbs
GSM6SDHOT 72" 45" 50" 115/230 750 lbs
GSM8SDHOT 96" 45" 50" 115/230 900 lbs
GSM10SDHOT 120" 45" 50" 115/230 1100 lbs
GSM12SDHOT 144" 45" 50" 115/230 1300 lbs
GSM... Other Sizes Available Upon Request Call for Pricing



Double Duty, Hot Case
Add 1-5/8" for each case end for overall length.
Click on model numbers to place order.
Model # Length Depth Height Voltage Weight Price
GSM4DDHOT 48" 45" 48" 115/230 400 lbs
GSM6DDHOT 72" 45" 48" 115/230 700 lbs
GSM8DDHOT 96" 45" 48" 115/230 850 lbs
GSM10DDHOT 120" 45" 48" 115/230 1050 lbs
GSM12DDHOT 144" 45" 48" 115/230 1250 lbs
GSM... Other Sizes Available Upon Request Call for Pricing



Single Duty, Non-Refrigerated Dry Case
Add 1-5/8" for each case end for overall length.
Click on model numbers to place order.
Model # Length Depth Height Voltage Weight Price
GSM4SDNR 48" 45" 50" 115 450 lbs
GSM6SDNR 72" 45" 50" 115 750 lbs
GSM8SDNR 96" 45" 50" 115 900 lbs
GSM10SDNR 120" 45" 50" 115 1100 lbs
GSM12SDNR 144" 45" 50" 115 1300 lbs
GSM... Other Sizes Available Upon Request Call for Pricing



Double Duty, Non-Refrigerated Dry Case
Add 1-5/8" for each case end for overall length.
Click on model numbers to place order.
Model # Length Depth Height Voltage Weight Price
GSM4DDNR 48" 45" 48" 115 400 lbs
GSM6DDNR 72" 45" 48" 115 700 lbs
GSM8DDNR 96" 45" 48" 115 850 lbs
GSM10DDNR 120" 45" 48" 115 1050 lbs
GSM12DDNR 144" 45" 48" 115 1250 lbs
GSM... Other Sizes Available Upon Request Call for Pricing

Don't see what you need? Many other sizes are available upon request. Give us a call!



Options & Accessories
  • S/S liner - per foot
  • Arborite bread shelf - per foot
  • Metal bread shelf - per foot
  • Joining kit (included in lineup)
  • Glass mezzanine shelf -4'
  • Glass mezzanine shelf -6'
  • Glass mezzanine shelf -8'
  • Glass mezzanine shelf -10'
  • Glass mezzanine shelf -12'
  • Glass mezzanine shelf w/light -4'
  • Glass mezzanine shelf w/light -6'
  • Glass mezzanine shelf w/light -8'
  • Glass mezzanine shelf w/light -10'
  • Glass mezzanine shelf w/light -12'
  • Pair of case ends -SD
  • Pair of case ends -DD
  • EPR Valve
  • Plexiglass divider
  • S/S flat shelf - 2'
  • 2 Step open S/S shelf -2'
  • 3 Step open S/S shelf -2'
  • Scale stand - White
  • Scale stand - S/S
  • S/S Fish pan w/ drain -2'
  • White 2 step open shelf -2'
  • White 2 step solid shelf -2'
  • Double top light -3'
  • Double top light -4'

European Style Double Curved Glass Service Case Features

Features & Benefits

  • Curved bottom hinged tempered glass front, modern European design with heavy duty North American refrigeration.
  • Top & Bottom gravity coil for optimal humidity.
  • Ideal for Fresh meats, seafood, deli, bakery, hot foods and dry display.
  • Foamed in place insulated tank with no obstructions for easy cleaning.
  • Removable rear plexi-sliding doors for easy loading/cleaning/peak serving.
Standard Equipment
  • Bottom hinged curved front glass
  • Rear integrated nylon wrapping shelf
  • Top fluorescent lighting
  • Large plastic waste outlet
Refrigeration system
  • Top and bottom gravity coils
  • Environmentally friendly refrigerant used

Cabinet & Finishes - Standard: White pre-painted galvanized metal exterior. Galvanized interior. Optional stainless steel liner and fish pans with drain. 2" foamed in place high density Polyurethane foamed cabinet, R-Value = 16. Rear plexiglass easily removable sliding glass capsule for access to interior of cabinet. Single deck cabinet with bottom hinged tempered curved glass full view front with glass ends and aluminum hardware.

Finish Options: Embossed white, Stainless (flat or embossed), Aluminum (flat or embossed), Standard and custom colors.

Shelving & Lighting: Epoxy coated white wire deck shelf. Optional glass mezzanine shelf with or without lights. Step and open shelving in white or stainless steel, and solid deck pans. Standard single fluorescent canopy light. Optional double canopy lighting.

Models - All models designed for Fresh Meat, Deli, Fish, and Bakery use. Models can be joined for continuous runs. Condensate disposal required. Optional hot gas or electric condensate pan available.

Controls & Monitors - Standard with digital thermometer. Options: Electronic programmable temperature control with digital readout. power light & switch, defrost indicator, temperature alarm with digital readout and dialer option.

Refrigeration System - Self-Contained, Remote, Non-Refrigerated and Hot Food systems available. Double gravity coil system minimizes drying of product. Systems are designed for use in environments, 75°F & 55% Relative Humidity. Systems designed for short term display of pre-chilled product. CSA/UL or ETL
